Half-Year “Heart Check”: Don't Let PCB Dust Burn Your PLC
Half-Year “Heart Check”
PCB Dust: Don't Let It Burn Your Whole PLC

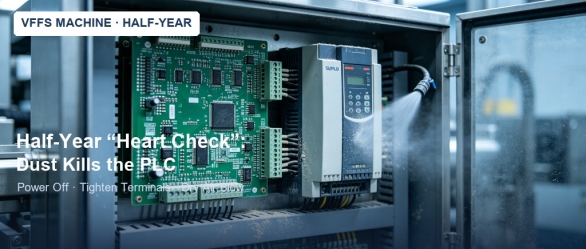

Cover: open electric cabinet, PCB and PLC
Earlier articles covered visible mechanics. This one is about the PLC and boards inside the cabinet — the heart that decides whether the whole machine lives. Half a year of dust and loose terminals can burn it out.
01 Why a Heart Check Matters

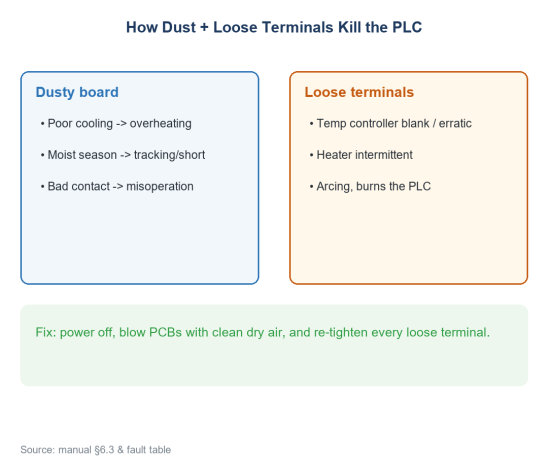

Fig. 1: How dust and loose terminals threaten the PLC (from manual §6.3, fault table)
Dust layers worsen cooling and overheat components; in damp weather they can cause tracking and short circuits. Loose terminals are exactly the “temperature controller blank / loose terminal” fault — bad contact and arcing that can destroy the PLC.
02 The Four Steps
Fig. 2: Four half-year heart-check steps (from manual §6.3)
“Check wiring on the terminal block and tighten any loose; check components and PCBs for dust or dirt and blow them clean with clean, dry compressed air.”
— VFFS manual §6.3
• Step 1: cut the main power before any electrical work;
• Step 2: re-tighten every loose terminal on the block;
• Step 3: blow dust off the boards with clean, dry compressed air;
• Step 4: inspect spares and the V-belt/timing belt; replace if badly worn.
03 Three Hard Lines
⚠ When checking or repairing the control circuit, never work live — always cut the power (safety rule #8).
⚠ Electrical work must be done by a qualified electrician; the machine's braking program is locked and must not be altered.
✔ If the machine has been idle or is first started, run the heaters at low temperature for about 20 minutes to dry out the heating section.
04 Half-Year Electrical Quick Reference
Table 1. Half-year electrical checklist (from manual §6.3 & safety)
|
Item |
Action |
Standard |
|
Wiring terminals |
Check & tighten each |
No looseness |
|
PCBs / components |
Blow clean, dry air |
No dust or dirt |
|
Worn spares |
Inspect & replace |
Worn parts renewed |
|
V-belt / timing belt |
Check wear |
Badly worn -> replace |
|
Safety |
Power off, qualified electrician |
Never live |
Final Thoughts
You touch the mechanics every day, but the heart is only seen once every six months. A half-day of power-off, blowing and tightening buys a year of peace from PLC burnout.
Not sure how to open the cabinet safely? Reply with keyword "heart" for the half-year electrical checklist, or send us your model and our engineers will outline the power-off, tighten-and-blow steps.
